BSIN

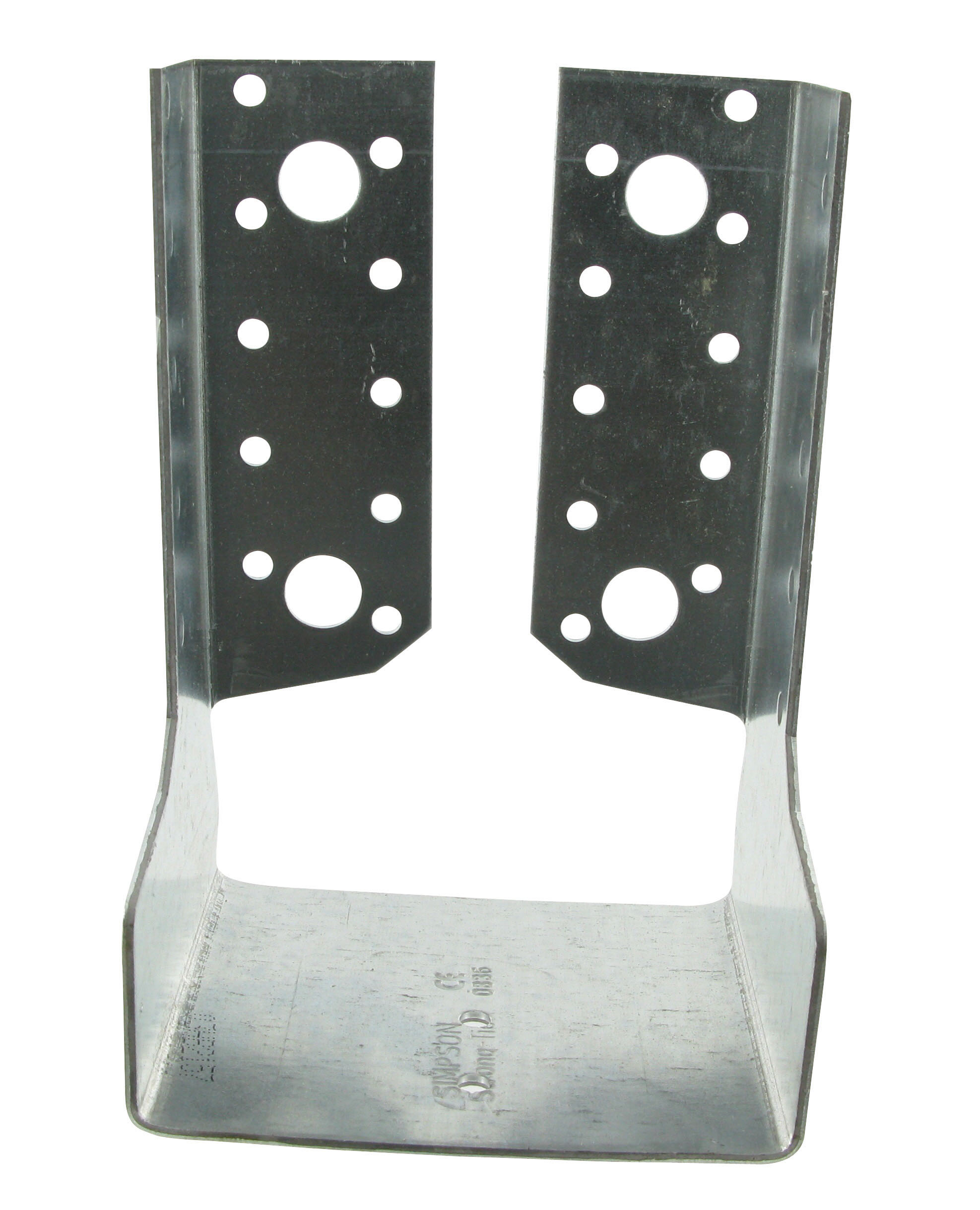

Scarpa ancoraggio interno

Le scarpe ancoraggio interno BSIN con alette laterali interne sono utilizzate per il fissaggio delle travi secondarie agli elementi di supporto (travi, XLAM).

Scheda tecnica

Marquage CE

ETE

Classe service 2

Acier électrozingué 20µm

EPD

Dettagli del prodotto

Immagini

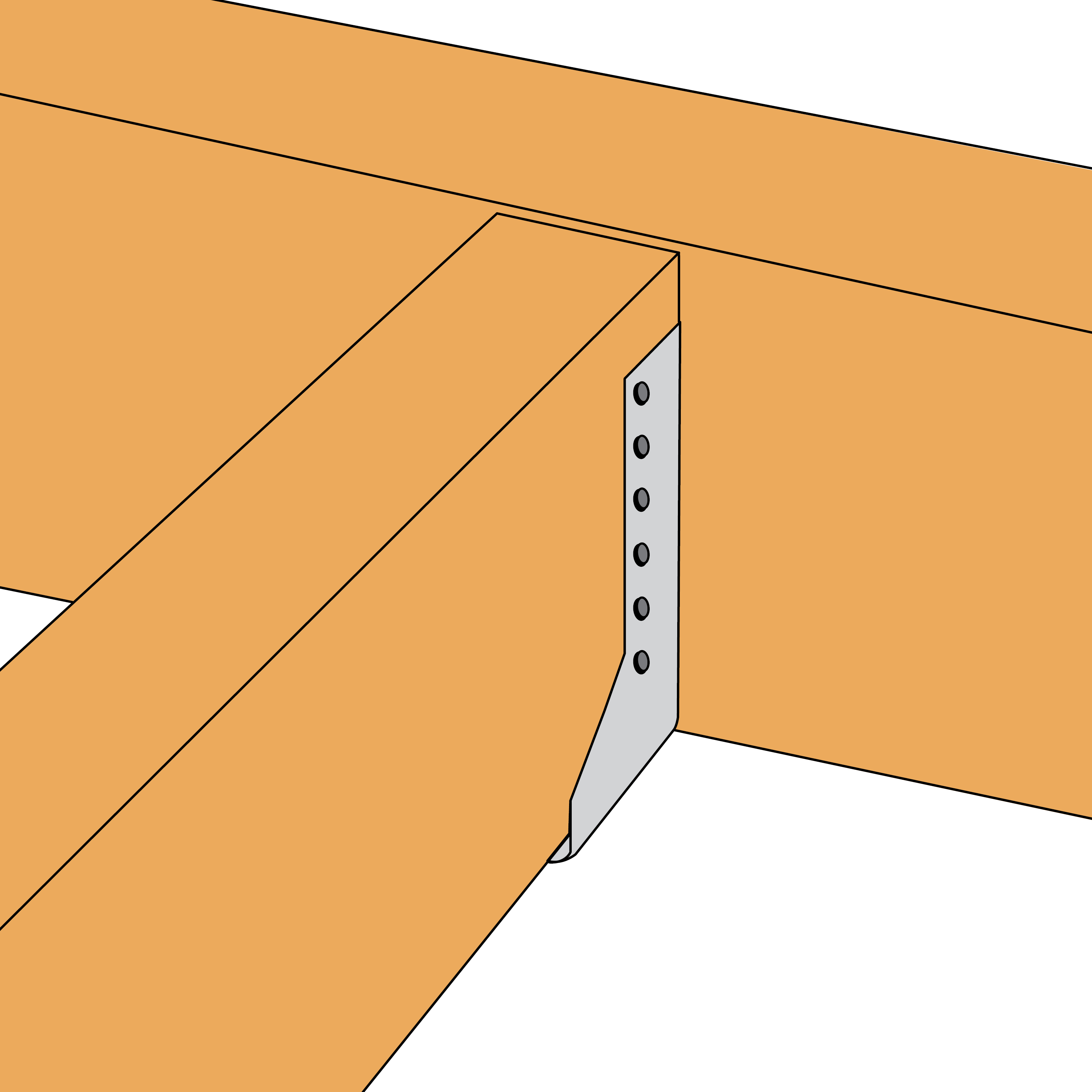

Chiodatura completa

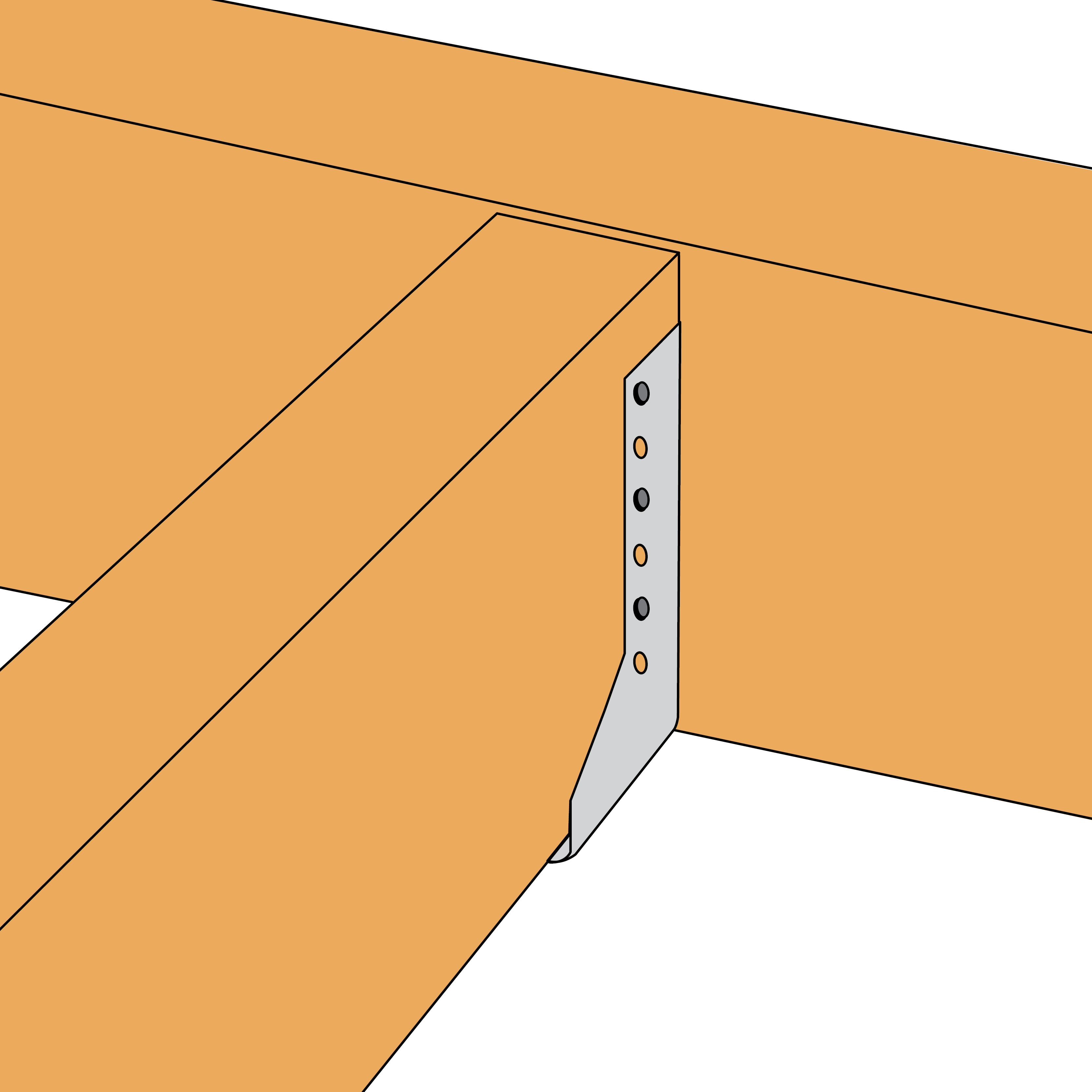

Chiodatura parziale

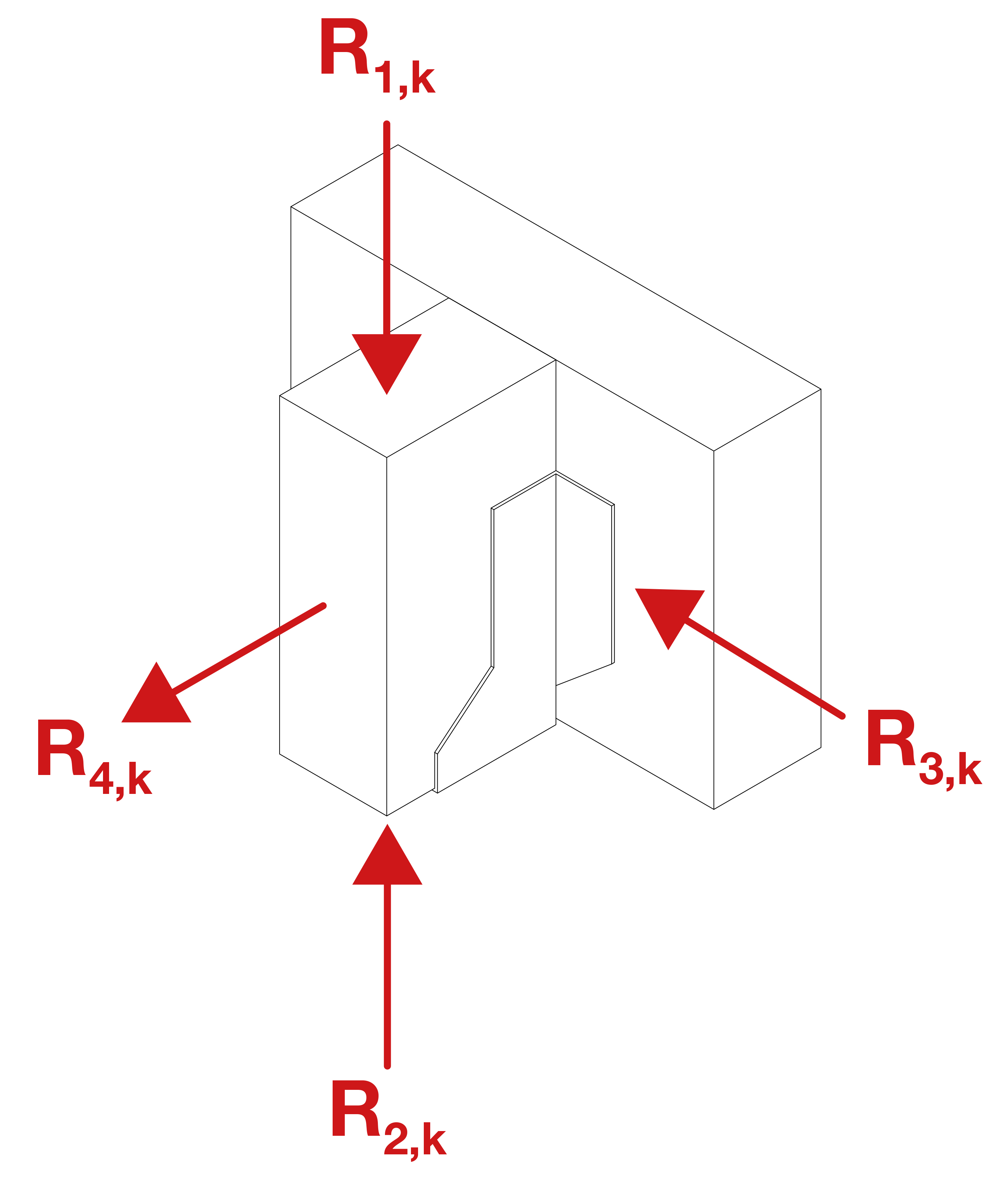

C_Joist Hanger_Load direction_Ill_Instld_EU_FR_CY.jpg

Caratteristiche

Materiale

Acciaio zincato S250GD + Z275 secondo EN 10346.

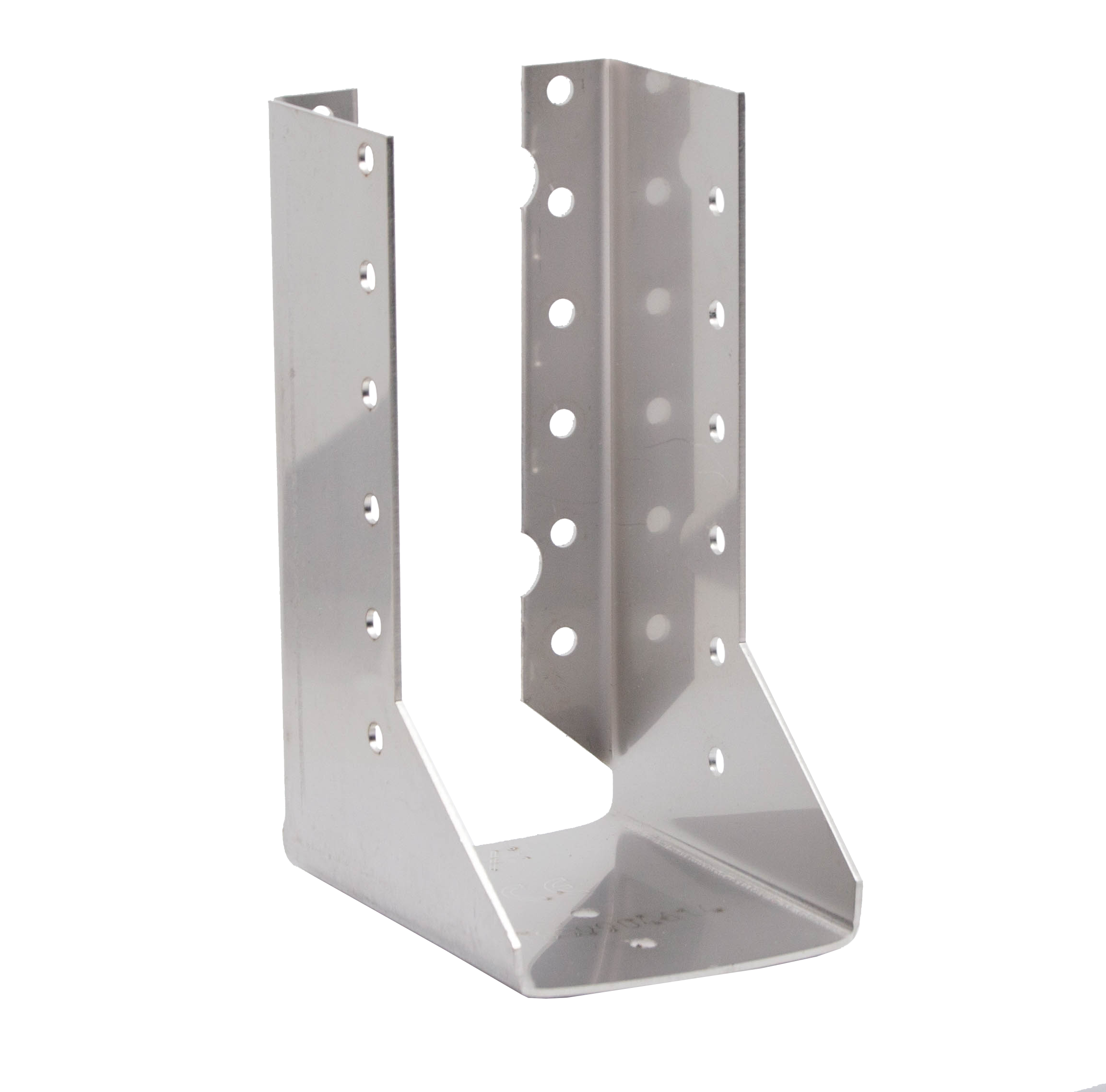

Disponibile anche in inox (A2): BSI51/93S2

Vantaggi

Le scarpe di ancoraggio BSIN sono certificate per carichi sui tre assi.

Applicazione

Applicazioni

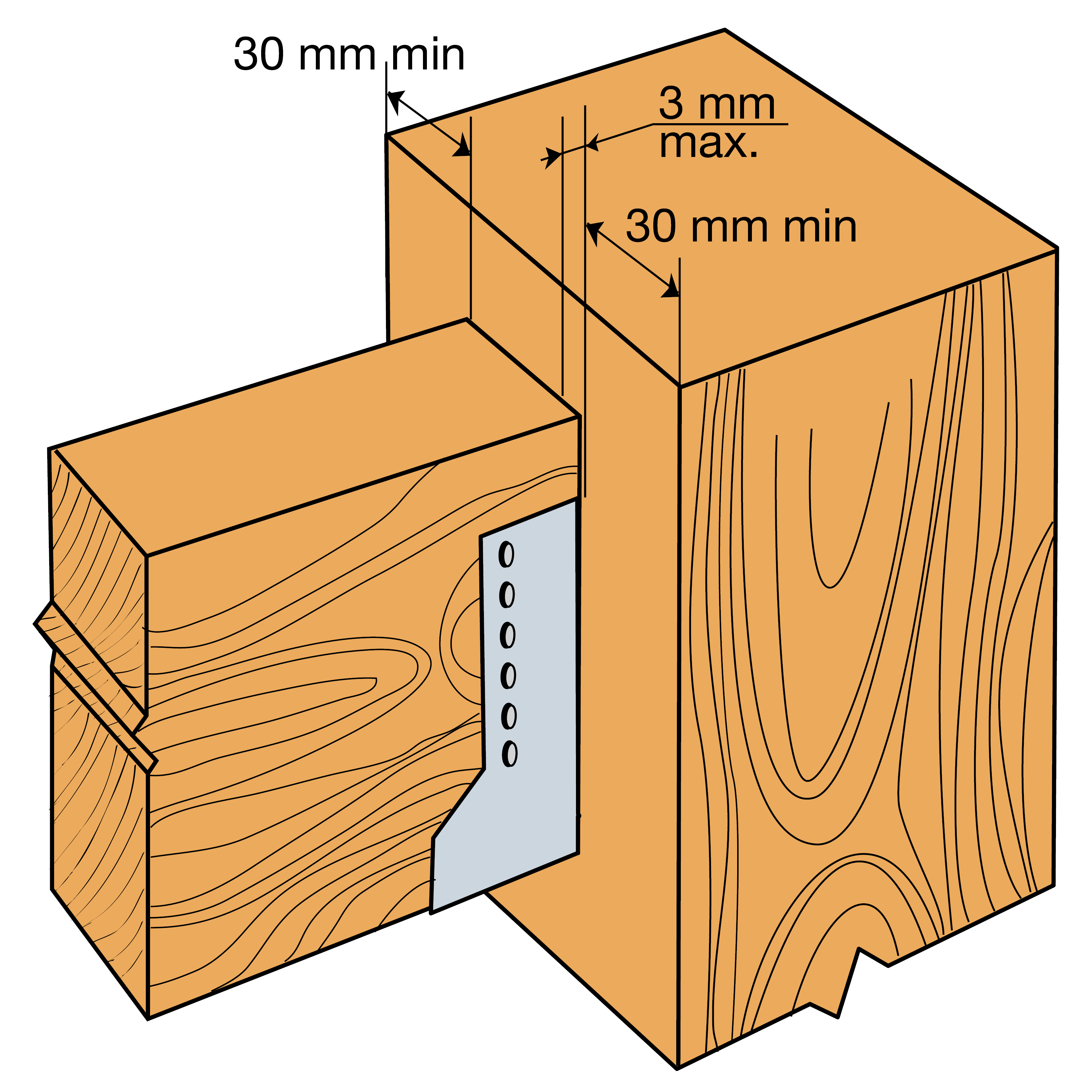

Elemento di supporto: legno massiccio, legno ingegnerizzato.

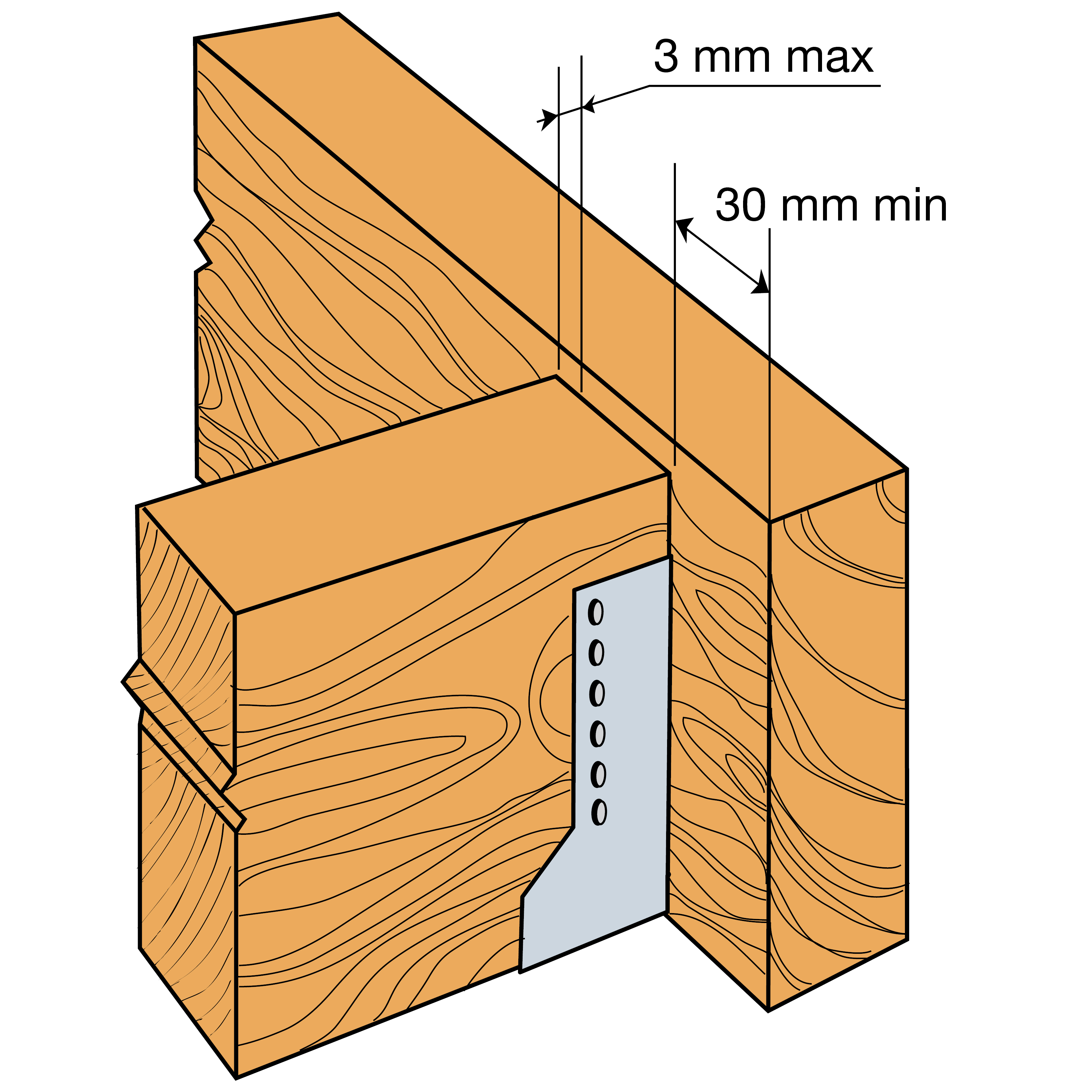

Elemento secondario: legno massiccio, legno ingegnerizzato.

Utilizzo

Le scarpe ancoraggio BSIN sono utilizzati per l'assemblaggio di travi.

Dati tecnici

Dimensioni

Gamma prodotto

Codici	DB nr.	NOBB nr.	Dimensione travetto [mm]				Dimensioni [mm]						Fori supporto	Fori travetto	Box Quantity	Peso [kg]
			Larghezza		Altezza		A	B	C	D	F	t	Ø5 [mm]	Ø5 [mm]
			min	max	min	max	A	B	C	D	F	t	Ø5 [mm]	Ø5 [mm]
BSIN40/105	1971581	53490481	38	40	115	158	40	105	76	17.5	82	2	6	6	50	0.28
BSIN45/78	1971583	53490500	43	45	88	116	45	77.5	76	17.5	82	2	4	4	50	0.22
BSIN45/127	1971582	53490496	43	45	138	191	45	127.5	84	18.5	86	2	8	8	50	0.4
BSIN48/126	1971584	53490515	46	48	136	189	48	126	84	18.5	86	2	8	8	50	0.36
BSIN48/166	1971585	53490526	46	48	186	276	48	166	84	18.5	86	2	10	10	40	0.44
BSIN51/100	1971586	53490534	49	51	110	149	51	99.5	76	17.5	82	2	6	6	50	0.28
BSIN60/95	1971588	53490553	58	60	105	143	60	95	76	17.5	82	2	6	6	50	0.28
BSIN60/160	1971587	53490545	58	60	180	266	60	160	84	18.5	86	2	10	10	40	0.44
BSIN64/93	1971590	53490572	62	64	103	140	64	93	76	34	82	2	10	6	50	0.28
BSIN64/118	1971589	53490564	62	64	128	177	64	118	76	34	82	2	16	9	50	0.36
BSIN76/112	1971591	53490583	74	76	122	168	76	112	76	34	82	2	16	9	50	0.36
BSIN80/110	1971592	53490598	78	80	120	165	80	110	76	34	82	2	16	9	50	0.36
BSIN80/130	1971593	53490602	78	80	140	195	80	130	76	34	82	2	16	10	40	0.4
BSIN80/150	1971594	53490617	78	80	170	250	80	150	76	34	82	2	20	12	40	0.44
BSIN80/180	1971595	53490621	78	80	190	270	80	180	76	34	82	2	26	15	30	0.52
BSIN80/210	1971596	53490636	78	80	220	315	80	210	76	34	82	2	32	18	30	0.56
BSIN90/145	1971597	53490640	88	90	165	240	90	145	76	34	82	2	20	12	40	0.44
BSIN98/141	1971598	53490655	96	98	155	218	98	141	76	34	82	2	20	12	40	0.44
BSIN100/100	1971571	53490386	98	100	110	150	100	100	84	41.5	86	2	12	8	30	0.38
BSIN100/140	1971572	53490394	98	100	150	210	100	140	76	34	82	2	20	12	40	0.44
BSIN100/170	1971573	53490405	98	100	180	255	100	170	76	34	82	2	26	15	30	0.52
BSIN100/200	1971574	53490413	98	100	210	300	100	200	76	34	82	2	32	18	30	0.56
BSIN115/163	1971575	53490424	113	115	172	244	115	162.5	76	34	82	2	26	15	30	0.58
BSIN115/193	1971576	53490432	113	115	202	289	115	192.5	76	34	82	2	32	16	30	0.65
BSIN120/130	2047028	55320345	118	120	140	195	120	130	76	34	82	2	20	12	30	0.44
BSIN120/160	1971577	53490443	118	120	170	240	120	160	76	34	82	2	26	15	30	0.58
BSIN120/190	1971578	53490458	118	120	200	285	120	190	76	34	82	2	32	18	30	0.65
BSIN140/120	1971579	53490462	138	140	143	180	140	120	84	41.5	86	2	20	10	40	0.49
BSIN140/180	1971580	53490477	138	140	190	270	140	180	84	41.5	86	2	32	16	30	0.65

Carico combinato:

Legno/Legno - Chiodatura completa

Codici	Legno/Legno - Chiodatura completa
	Fissaggi		Capacità caratteristiche - Legno C24 [kN]
	Supporto	Travetto	R_1.k				R_2.k				R_3.k				R_4.k
	Q.tà	Q.tà	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60
BSIN40/105	6	6	4.4	5.1	-	-	2.8	3.4	-	-	0.7	0.7	-	-	1.8	2.2	-	-
BSIN45/78	4	4	2.6	3.1	-	-	1.5	1.9	-	-	0.3	0.4	-	-	1.2	1.5	-	-
BSIN45/127	8	8	8.3	9.6	-	-	4.5	5.4	-	-	1.3	1.4	-	-	2.5	2.9	-	-
BSIN48/126	8	8	8.2	9.5	-	-	4.5	5.4	-	-	1.3	1.4	-	-	2.5	2.9	-	-
BSIN48/166	10	10	11.8	13.5	-	-	6.4	7.7	-	-	1.6	1.7	-	-	3.1	3.7	-	-
BSIN51/100	6	6	4	4.7	-	-	2.8	3.4	-	-	0.7	0.7	0.9	-	1.8	2.2	2.9	-
BSIN60/95	6	6	3.7	4.3	5.7	-	2.8	3.4	4.4	-	0.7	0.7	0.9	0.9	1.8	2.2	2.9	3.7
BSIN60/160	10	10	11.5	13.1	16.6	-	6.4	7.7	10	-	1.6	1.7	2.1	2.2	3.1	3.7	4.9	6.2
BSIN64/93	10	6	6.6	7.8	10.3	12.4	4.2	5	6.6	8.2	1.2	1.3	1.6	1.7	3.1	3.7	4.9	6.2
BSIN64/118	16	9	11.8	13.9	18.1	21.7	9.5	11.3	14.8	18	2.6	2.8	3.4	3.6	4.9	5.9	7.8	9.8
BSIN76/112	16	9	10.8	12.7	16.6	20	9.5	11.3	14.8	18	2.6	2.8	3.4	3.7	4.9	5.9	7.8	9.8
BSIN80/110	16	9	10.4	12.3	16.1	19.5	9.5	11.3	14.8	18	2.6	2.8	3.4	3.7	4.9	5.9	7.8	9.8
BSIN80/130	16	10	13.7	16	20.6	24.3	9.5	11.3	14.8	18	2.2	2.4	2.9	3.1	4.9	5.9	7.8	9.8
BSIN80/150	20	12	18.2	21.2	27.3	32	13.3	15.9	20.7	25	3.3	3.6	4.3	4.6	6.1	7.4	9.8	12.3
BSIN80/180	26	15	26.2	30.4	37.7	40.1	19.2	22.8	29.6	35.4	4.5	4.9	6	6.3	8	9.6	12.7	16
BSIN80/210	32	18	33.5	36.7	44.3	47.2	28.1	32.9	40	42.5	6.1	6.7	8.1	8.6	9.8	11.8	15.7	19.7
BSIN90/145	20	12	17.3	20.2	26.1	30.7	13.3	15.9	20.7	25	3.3	3.6	4.4	4.6	6.1	7.4	9.8	12.3
BSIN98/141	20	12	16.6	19.4	25.1	29.7	13.3	15.9	20.7	25	3.2	3.5	4.2	4.4	6.1	7.4	9.8	12.3
BSIN100/100	12	8	8.1	9.7	12.5	15.1	6.2	7.4	9.7	11.8	2.6	2.9	3.5	3.7	4.9	5.9	7.8	9.8
BSIN100/140	20	12	16.4	19.2	24.8	29.4	13.3	15.9	20.7	25	3.3	3.6	4.4	4.7	6.1	7.4	9.8	12.3
BSIN100/170	26	15	24.3	28.3	36.3	40.1	19.2	22.8	29.6	35.4	4.5	5	6	6.4	8	9.6	12.7	16
BSIN100/200	32	18	31.9	36.7	44.3	47.2	28.1	32.9	40	42.5	6.2	6.8	8.2	8.7	9.8	11.8	15.7	19.7
BSIN115/163	26	15	22.7	26.5	34.2	40.1	19.2	22.8	29.6	35.4	4.7	5.2	6.3	6.7	8	9.6	12.7	16
BSIN115/193	32	16	30.2	33	39.9	42.5	26.6	29.3	35.5	37.8	6.4	7	8.5	9	9.8	11.8	15.7	19.7
BSIN120/130	20	12	14.5	17.1	22.2	26.6	13.3	15.9	20.7	25	2.2	2.4	2.9	3.1	4.9	5.9	7.8	9.8
BSIN120/160	26	15	22.1	25.8	33.4	39.4	19.2	22.8	29.6	35.4	4.6	5	6	6.4	8	9.6	12.7	16
BSIN120/190	32	18	29.7	34.5	44.3	47.2	28.1	32.9	40	42.5	6.2	6.8	8.3	8.8	9.8	11.8	15.7	19.7
BSIN140/120	20	10	13.9	16.4	21.4	25.8	13.3	15.9	20.6	23.6	3.2	3.5	4.2	4.5	6.1	7.4	9.8	12.3
BSIN140/180	32	16	28.9	33	39.9	42.5	26.6	29.3	35.5	37.8	6.5	7.1	8.5	9.1	9.8	11.8	15.7	19.7

Legno/Legno - Chiodatura parziale

Codici	Legno/Legno - Chiodatura parziale
	Fissaggi		Capacità caratteristiche - Legno C24 [kN]
	Supporto	Travetto	R_1.k				R_2.k				R_3.k				R_4.k
	Q.tà	Q.tà	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x35	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60
BSIN64/93	6	4	3.7	4.4	5.7	7	2.8	3.4	4.4	5.4	0.9	0.9	1.1	1.2	1.8	2.2	2.9	3.7
BSIN64/118	10	5	7.7	9	11.7	14	6.4	7.7	10	11.8	2.1	2.3	2.8	3	3.1	3.7	4.9	6.2
BSIN76/112	10	5	7.1	8.3	10.9	13	6.4	7.7	10	11.8	2.2	2.4	2.8	3	3.1	3.7	4.9	6.2
BSIN80/110	10	5	6.9	8.1	10.6	12.7	6.4	7.7	10	11.8	2.2	2.4	2.9	3	3.1	3.7	4.9	6.2
BSIN80/130	10	6	8.9	10.4	13.4	15.8	6.4	7.7	10	12.1	1.8	2	2.4	2.6	3.1	3.7	4.9	6.2
BSIN80/150	12	6	11.5	13.4	17.2	18.9	8.7	10.3	13.3	14.2	2.4	2.6	3.2	3.4	3.7	4.4	5.9	7.4
BSIN80/180	14	8	14	16.2	20.7	23.6	11.1	13.2	17	18.9	2.8	3.1	3.7	3.9	4.3	5.1	6.9	8.6
BSIN80/210	18	10	19.7	22	26.6	28.3	16.6	18.3	22.2	23.6	4.1	4.5	5.5	5.8	5.5	6.6	8.8	11.1
BSIN90/145	12	6	11	12.8	16.5	18.9	8.7	10.3	13.3	14.2	2.4	2.6	3.2	3.4	3.7	4.4	5.9	7.4
BSIN98/141	10	6	10	11.6	14.8	17.2	8.3	9.9	12.7	14.2	1.6	1.8	2.2	2.3	3.1	3.7	4.9	6.2
BSIN100/100	8	4	5.9	7.1	9.2	10.9	4.5	5.4	7	8.6	1.4	1.5	1.8	1.9	2.5	2.9	3.9	4.9
BSIN100/140	12	6	10.5	12.3	15.8	18.6	8.7	10.3	13.3	14.2	2.4	2.6	3.2	3.4	3.7	4.4	5.9	7.4
BSIN100/170	14	8	12.9	15	19.3	22.6	11.1	13.2	17	18.9	2.8	3.1	3.7	4	4.3	5.1	6.9	8.6
BSIN100/200	18	10	18.6	21.5	26.6	28.3	16.6	18.3	22.2	23.6	4.2	4.6	5.6	5.9	5.5	6.6	8.8	11.1
BSIN115/163	12	8	11.5	13.3	17.1	19.9	10.7	12.6	16.2	18.9	2	2.2	2.7	2.9	3.7	4.4	5.9	7.4
BSIN115/193	16	8	16.8	18.4	22.2	23.6	13.3	14.6	17.8	18.9	3.3	3.6	4.4	4.6	4.9	5.9	7.8	9.8
BSIN120/130	10	6	8.9	10.4	13.4	15.8	8.3	9.9	12.7	14.2	1.8	2	2.4	2.6	3.1	3.7	4.9	6.2
BSIN120/160	14	8	11.7	13.7	17.8	21	11.1	13.2	17	18.9	2.8	3.1	3.8	4	4.3	5.1	6.9	8.6
BSIN120/190	18	10	17.4	20.2	25.9	28.3	16.6	18.3	22.2	23.6	4.2	4.6	5.6	6	5.5	6.6	8.8	11.1
BSIN140/120	10	6	8.2	9.6	12.5	14.8	6.4	7.7	10	12.1	1.7	1.8	2.2	2.3	3.1	3.7	4.9	6.2
BSIN140/180	16	8	16.8	18.4	22.2	23.6	13.3	14.6	17.8	18.9	3.3	3.6	4.4	4.7	4.9	5.9	7.8	9.8
